IDAS - Light Pollution Suppression Filter (LPS) - LPS-P3
IDAS - Light Pollution Suppression Filter (LPS) - LPS-P3
IDAS - Light Pollution Suppression Filter (LPS) - LPS-P3
IDAS - Light Pollution Suppression Filter (LPS) - LPS-P3
IDAS - Light Pollution Suppression Filter (LPS) - LPS-P3
IDAS - Light Pollution Suppression Filter (LPS) - LPS-P3

IDAS - Light Pollution Suppression Filter (LPS) - LPS-P3

  • Vendor
    Astro-Hutech
    Sale price
    $199.00
    Regular price
    $199.00
    Unit price
    per

    Availability:

    Estimated Arrival: Between Oct 31 and Nov 12. *ETA to USA Only

    Light pollution suppression (LPS) filters are designed to suppress the common mission lines generated by artificial lighting, yet allow the important nebula emission lines to pass, thus enhancing the contrast of astronomical objects, particularly emission nebulae (see filter plots to see the effect on light pollution emission bands). The most recently introduced version (D2) has a bandpass designed to cope with the increasing trend of society's switch to LED lighting.

    Unlike other light pollution suppression filters, IDAS filters are specifically designed for balanced color transmission using the IDAS unique Multi-Bandpass Technology (MBT) process. The balanced transmission allows color photographs to be taken with minimal color cast to broadband emission objects such as stars, galaxies and globular clusters.

    LPS filters utilize the unique IDAS Ion Gun Assisted Deposition (IGAD*) coating technology for superior coating durability (quartz hardness) and safer cleaning. IGAD coatings also improve temperature and humidity stability of the filter performance, reducing spectrum shifts down to +/-1nm from the +/-3 or 4nm shift of standard coatings.

    CCD imaging can also benefit, because although CCD imagers can already shoot through light pollution to some extent, including an LPS filter to the setup gives an added (signal-to-noise) edge as shown in these CCD examples (comparison testing by G. Tomita in Tokyo).

    • Updated version from LPS-P2 and LPS-D1
    • Primary targets of light pollution are mercury and high/low sodium vapor lines
    • More strongly blocks UV and NIR until 1200nm than previous models. More effective to today’s SONY STARVIS sensors which seem to have the higher sensitivity in NIR range.
    • Color balance is more tweaked for recent one-shot color cameras
    • Higher and flatter transmission peaks while deeper optical density – creates higher image contrast and less internal reflections
    • IDAS-proprietary technologies – IGAD, MBT amd UFP
    • Made in Japan

    Light pollution suppression filters are often the topic for heated discussions among amateur astronomers because of some common misconceptions:

    • Filters make nebulae brighter.
      This is incorrect. Filters subtract light, making objects dimmer. In the case of filters designed for light pollution suppression, wavelengths from certain types of artificial lights are blocked, but other wavelengths (particular the nebula emission lines) are allowed through, thus improving contrast. This allows longer astrophoto exposures to be made before the sky background begins to wash out the image desired. Visually, the contrast increase may be perceived to be an increase in brightness.



    • Filters make nebulae easier to see.
      This is true only if properly used. If used in an urban environment, there are often sources of light (including the sky itself) which prevent full dark adaptation of the eye (about 30 minutes in full darkness is normally required).



    • Filters work on all objects.
      This is not true of all light pollution suppression filters to the same degree. In general, broadband sources (galaxies, clusters, stars, or reflections of stars) will not experience as great a contrast gain as emission line objects. Filters designed for visual use or to select specific narrow emission lines (e.g. OIII) may suppress broad parts of the spectrum, decreasing the light from broadband sources even more than filters designed for balanced color photography.



    • Filters will block all light pollution.
      This is not true. Many light sources such as car headlights are still broadband sources and will not be effectively blocked.



    • Filters increase exposure times.
      While light pollution suppression filters will slightly increase the exposure times of emission line objects in their bandpass and affect broadband sources somewhat more, they do not require increasing the length of an exposure. However, because they increase the contrast of emission line objects compared to the sky background, it is usually desirable to increase exposure times to make better use of the imaging media's dynamic range.



    • Filters cause internal reflections.
      Interference filters such as the IDAS LPS filters work by passing virtually all of the selected wavelengths through the filter layer and reflecting all other wavelengths, so they inherently do reflect the rejected light (unlike absorption filters).

      However, this is not a problem in a high quality telescope with fully multicoated optics (all surfaces, including internal surfaces multicoated) as the reflected components should be passed back out the scope. Low cost optics which typically omit anti-reflection coatings on internal surfaces may reflect enough light from bright objects back into the filter to cause reflections to be visible at wavelengths near the band edges. Reflections from curved optical surfaces in the telescope may also alter filter surface incidence angles enough to shift reflected components into the filter's bandpass. The solutions are to use high quality optics both ahead and behind the filter or, if possible, place the filter as far as allowed from other optical components such as a flattener or compressor.

      The IDAS filters themselves are high quality optical elements and are anti-reflection multicoated on the front surface to prevent internal reflections from being a problem.

    Some limitations of light pollution suppression filters should also be kept in mind:

    • For photographic use, some color shift will occur because the filters do not block light in infinitely narrow bands. This affects the ratio of light in the three color bands being sampled, causing a shift in the perceived colors. The degree to which this occurs may depend not only on the filter being used, but also the type of color film used. Visually, color shifts are usually inconsequential since most extended objects will be below the eye's threshold for color detection.



    • Narrowband filters are tuned to specific wavelengths by carefully controlling the thickness of layers of dielectric material on glass. Because the effective thickness changes when the filter is tilted, the wavelength tuning will also change. In practice, this means that wide-angle views will show a perceptible color shift between the center and edges of a photo.

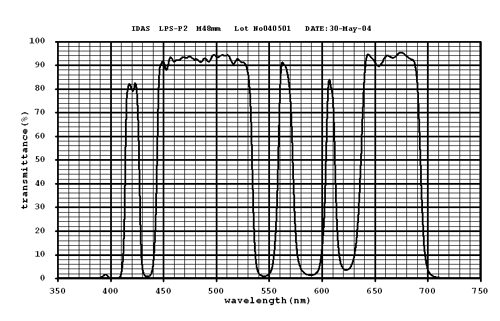

    Above is a sample of the filter lot data plot which is shipped with each filter.

    The IDAS production criteria for filters are as follows, arranged from left to right (short to long wavelength) as plotted above:

    Wavelength (nm)

      Pass/Block   Transmission

    365

      Block   6.5% max

    405

      Block   6.5% max



      Pass   60% min (avg)

    436

      Block   6.5% max



      Pass   92% min (avg)

    546

      Block   6.5% max



      Pass   75% min (avg)

    590

      Block   6.5% max



      Pass   75% min (avg)

    623

      Block   25% max



      Pass   80% min (avg)
